Tablet Alu Alu Packing Blister Packaging Machine Pharmaceutical Industry

Name: Tablet Alu Alu Packing Blister Packaging Machine Pharmaceutical Industry
Brand: HUALE MACHINERY
Price: 1 USD

Buy cheap Tablet Alu Alu Packing Blister Packaging Machine Pharmaceutical Industry product

Brand Name : HUALE MACHINERY

Model Number : DPP-250E

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1Set

Price : Negotiation

Supply Ability : 15 Set per month

Delivery Time : 30 working days after received your payment.

Packaging Details : WOODEN BOX.

Product Name : Alu Alu Blister Packing Machine

Output : Max.45 cuttings/minute

Max. Forming Area and Depth : 250*120*12mm

Punch Pin : PTFE（High temperature resistant, non stick coating）

Control : PLC control

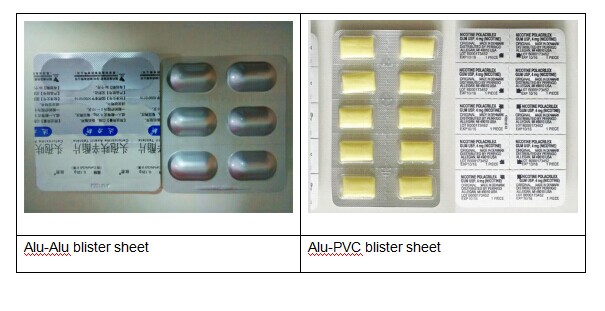

Used : Alu-PVC & Alu-Alu

Contact Now

Tablet Alu Alu Packing Blister Packaging Machine Pharmaceutical Industry

Introduction

The alu alu machinet uses the composite Aluminum film as material which has best performance of eal,proofing moisture and light,and uses special mould to cool-form.It is renewed packing equipment in pharmaceutical industry.The machine has two functions.When it changes mould,the machine can pack the object not only with Aluminum-Aluminum,but also with Aluminum-Plastic.

Technical Parameter

Model DPP-250E	ALU ALU	ALU-PVC
Machine Body	Stainless Steel 304/316
Blanking frequency(times/min)	15-30	20-45
Adjustable pulling length	30-120mm
Blister Plate Size	Design According To Customers’ Requirements
Max Forming area and depth(mm)	25012012	25011015
Air compressor(self-prepared)	0.6-0.8Mpa ≥0.4m3/min
Mould cooling	(Recycle water or circulating water consumption) 40-80 L/h
Power supply(Three phase)	380V/220V 50HZ 4.5KW	380V/220V 50HZ 8KW
Wrapper specification (mm)	Alu Alu Foil 260(0.14-0.18)(Φ400)	PVC 260(0.15-0.4)(Φ400)
	Aluminum Foil:260(0.02-0.15)(Φ400)
Overall Dimension(LWH) (including foundation)	29007501600
Dimension of Each Part	15007501600(front)
	14007501450(back)
Weight	About 1200kg

Machine Features:

Blister forming, hot sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel
orientation, each can move freely in the mandrel when shaking the hand wheel, and the bliser packing
machine has staff gauge, easy to adjust and exact orientation.
Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter
for speed control,servo traction,which can ensure the length of blister traction adjustable within the
range.
Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could
collocate exclusive Automatic Feeder. The blister packing machine could fit for the packaging of
ampoule, needle, Xilin Bottle, big honey pill, medicine machine and some special shape etc.
The special design of molds in rectangle shape,ladder type fixing,provide much convenience and ease
to molds replacement. All material contact parts adopt high quality stainless steel and aluminum metal,
slap-up surface treatment craft.
Detachable design make the blister packing machine can be easily carried and installed according to
the requirement of user.

Tablet Alu Alu Packing Blister Packaging Machine Pharmaceutical Industry

Attention

When make ALU ALU product:

Turn off No.2 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and

down molds, sealing up and down molds, blanking up and down molds)

When make ALU PVC product: Turn on all of the stations.
