Aluminum Aluminum Automatic Blister Packing Machine / Blistering Machine
SMALL AUTOMATIC ALUMINUM ALUMINUM BLISTER PACKING MACHINE
Can make both ALU-ALU and ALU-PVC

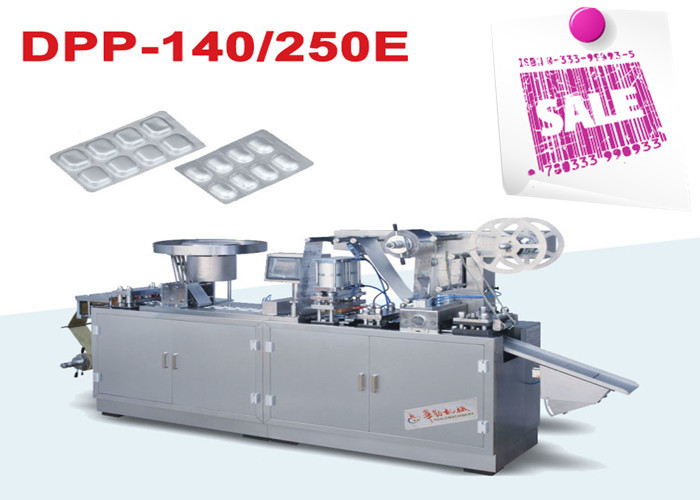

DPP-140E
| Model | ALU-ALU | ALU-PVC |
| Machine Body Material | SS 304/316 |
| Blanking frequency(times/min) | 15-30 | 20-45 |
| Adjustable pulling length | 30-120mm |
| Blister Size | Design According To Customers’ Requirements |
| Max Forming area and depth(mm) | 140*110*12 | 140*110*15 |
| Air compressor(self-prepared) | 0.6-0.8Mpa ≥0.4m3/min |
| Mould cooling | (Recycle water or circulating water consumption) 40-80 L/h |
| Power supply(Three phase) | 380V/220V 50HZ 3KW | 380V/220V 50HZ 5.5KW |
| Wrapper specification (mm) | Alu Alu Foil 150*(0.14-0.18)*(Φ400) | PVC 150*(0.15-0.4)*(Φ400) |
| Aluminum Foil:150*(0.02-0.15)*(Φ400) |
| Overall Dimension(L*W*H) (including foundation) | 2400*650*1450 |
| Dimension of Each Part | 1350*650*1250(front) |
| 1050*650*1450(back) |
| Weight | About 800kg |
Description
- Main motor adopts inverter speed controlling system.
- It adopts newly designed double hopper feeding system with high precision optical control for
- automatic
- and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.
- Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing
- and
- The machine will stop automatically once the materials are finished. Also it has installed emergency
OVERALL SKETCH
1: PVC feeder 2: PVC transporting roller 3: Heating box 4: Forming mechanism(the material of punch head is PTFE)
5: Medicine feeder(The manual feeding without this station)
6: Touch-screen 7: PTP transporting roller
8: Heat-sealing mechanism 9: Trace-pressing mechanism
10: PTP feeding mechanism & scrap-collector 11: Tow mechanism
12: Blanking mechanism 13: Finished product output
Attention
When make ALU ALU product:
Turn off No.3 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and
down molds, sealing up and down molds, blanking up and down molds)
When make ALU PVC product: Turn on all of the stations.
PACKAGE
- The machine will not be shaking in transport with wooden fixed.
- The machine will not be affected with damp in transport with packed with PE plastic bags.
- Easy shaking station will fixed with hard rope.
- Long machine will packed separatly.
- If there are strict requirements, chassis can use iron girders.
